Khoom Taw Qhia

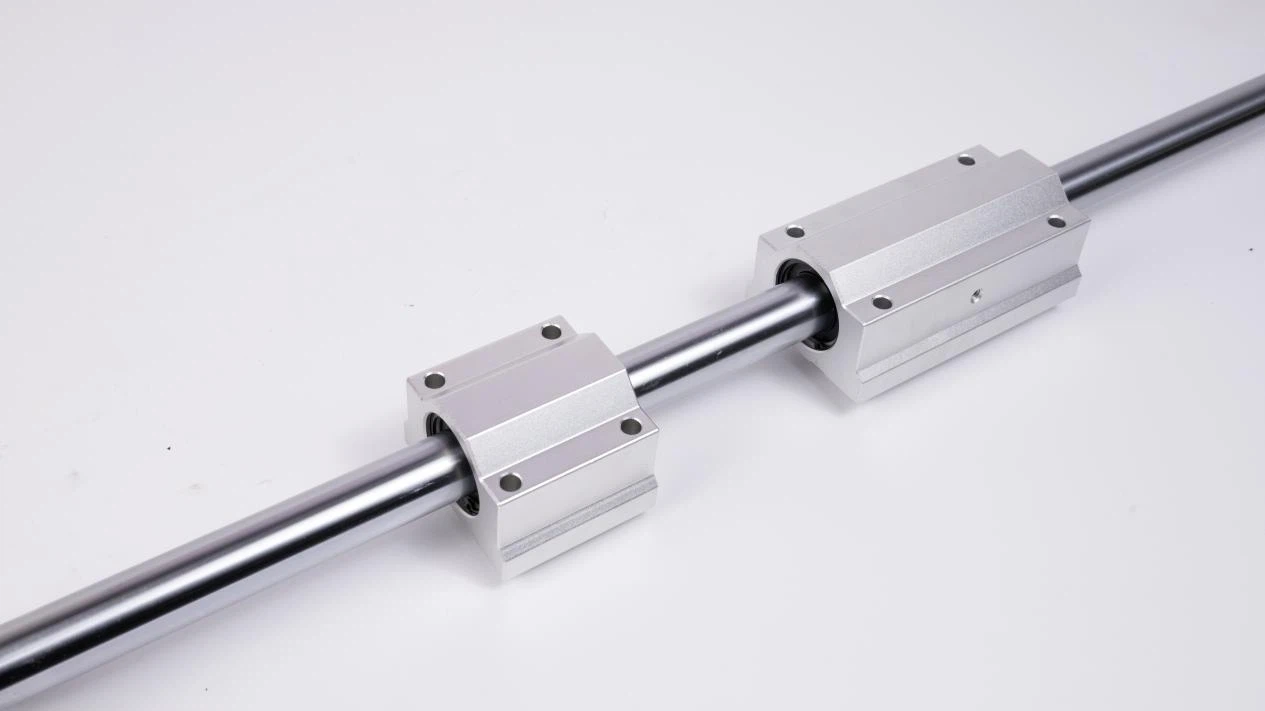

Daim ntawv qhia puag ncig txoj kab (tseem hu ua optical ncej linear qhia lossis phau ntawv qhia kev txhawb nqa ncej) yog tus nqi -txoj kev daws teeb meem zoo. Tshwj xeeb tsim rau cov xwm txheej nrog nruab nrab- tsis tshua muaj load thiab nruab nrab- qhov yuav tsum tau ua, cov khoom no tau siv dav hauv cov khoom siv tsis siv neeg kis tau tus mob, xws li kev lag luam robots, tsis siv neeg kaw, khoos phis tawj, tshuab luam ntawv precision, tshwj xeeb lub tog raj kheej rods, tsis siv neeg yas ntoo tshuab thiab lwm yam kev siv tshuab tsis siv neeg, nrog rau hauv cov teb xws li 3D tshuab luam ntawv, cov khoom siv kho mob thiab cov khoom siv kho mob. Nyob rau tib lub sijhawm, vim nws qhov nyuaj, nws tseem tuaj yeem txuas ntxiv lub neej kev pabcuam ntawm cov cuab yeej zoo tib yam, ruaj khov ua tiav cov kev taw qhia thiab zawv zawg zog, thiab muab kev txhawb nqa kev txhawb nqa rau cov khoom siv.
Khoom Parameters
1.Product nta thiab kev pab cuam
1) Cov ntaub ntawv tseem ceeb thiab cov txheej txheem
Daim ntawv qhia round ncej linear yog ua los ntawm siab - carbon steel lossis bearing steel. Tom qab kev kho cua sov, nws qhov hardness ncav cuag HRC62 ± 2. Qhov saum npoo yog av rau g6-qib precision, nrog roughness tswj ntawm RA0.4-0.8. Qhov tob ntawm txheej hardened tuaj yeem ncav cuag 0.6mm ~ 3.5mm, sib txuas lub zog siab, hnav tsis kam, thiab kev txav mus los.
Qhov saum npoo ntawm no puag ncig ncej linear phau ntawv qhia undergoes tshwj xeeb sib tsoo thiab nyuaj chrome plating tshuab kev kho mob, thiab ces yog ua los ntawm daim iav polishing. Nws muaj kev sib txhuam zoo heev thiab corrosion kuj. Tsis tas li ntawd, chrome - plated rods nrog cov chaw kho los ntawm kev ua haujlwm siab - zaus muaj rau xaiv. Nws yog haum rau dav dav thiab tshwj xeeb specifications thiab kuj yuav customized. Zoo yog guaranteed.
2) Lub puag ncig ncej linear qhia txoj kab uas hla: tag nrho cov kev pab cuam los ntawm 3mm mus rau 150mm
Lub round ncej linear qhia ntev kev xaiv: siab tshaj plaws customizable ntev mus txog 6 meters
Nws ua tau raws li qhov sib txawv ntawm cov khoom siv sib txawv rau qhov loj ntawm cov lus qhia ncej.
3) Customized processing Services
Rau cov qauv tsim tshwj xeeb, cov nram qab no precision machining tom qab hard chrome kho cua sov yog muaj:
Tig: Xov txiav, stepped ncej sib sau, kawg lub ntsej muag drilling
Milling: Keyway milling, radial qhov machining, snap nplhaib grooves
Lwm cov txheej txheem: Tsis yog - qauv qauv machining raws li kev kos duab
Peb lub tuam txhab tshwj xeeb hauv kev muab cov khoom lag luam customized round ncej linear qhia cov khoom, npog cov kev qhia tshwj xeeb ntawm txoj kab uas hla φ3mm txog φ150mm, nrog tus qauv ntev txog li 6000mm. Rau qhov tshwj xeeb ntev uas yuav tsum tau ua, cov kev daws teeb meem hloov tau muaj nyob rau - yog tias tsis yog - tus qauv ntev tshaj 6000mm yog xav tau, peb yuav koom tes nrog cov peev txheej los ntawm kev siv lub tshuab docking los xyuas kom meej tias cov kev xav tau ntawm ultra- ntev specifications tau ua tiav, thiab lav koj tus kheej cov kev xav tau ntau lawm nrog tag nrho - cov kev pabcuam.
Thaum koj yog cov kev cai tshwj xeeb ntawm machining, xws li threading, coaxial qhov drilled thiab tapped, radial qhov drilled thiab tapped, txo ncej txoj kab uas hla thiab lwm yam, peb tuaj yeem tshuab rau koj, thiab cov tshuab tshwj xeeb no tiav tom qab kev kho cua sov thiab nyuaj chromic kom paub meej cov khoom. xa tuaj rau peb koj cov duab kos duab los yog xiav luam tawm kom sai quotatime thiab kev txiav txim, koj yuav tsum txaus siab rau peb cov kev pabcuam.
Khoom nta thiab kev siv
Cov yam ntxwv tseem ceeb ntawm Lub Circular Axis Linear Guide
Qhov zoo tshaj plaws
Tus nqi- Ua tau zoo: Kwv yees li 30%-50% tus nqi qis dua piv rau cov lus qhia square linear, zoo tagnrho rau cov phiaj xwm nyiaj txiag.
Ultra-Kev Yooj Yim Yooj Yim: Kev sib dhos nrawm nrog tsuas yog txhawb nqa cov blocks thiab cov kab bearings, txuag tshaj 50% ntawm lub sijhawm teeb tsa.
Lub teeb yuag: 40% sib dua rau ib chav tsev ntev dua li cov lus qhia square steel, zoo meej rau cov khoom siv me me lossis qhov chaw me me.
Txhim kho Corrosion Resistance: xaiv cov khoom siv stainless hlau (piv txwv li, SUS304) nrog rau qhov tawv tawv mus txog HRC 58+ thiab ntsev tsuag tshuaj tiv thaiv ntau tshaj 500 teev
Kev txwv
Load Limitations: Lub peev xwm thauj khoom dynamic yog 40%-60% qis dua li cov lus qhia ntawm pob / cov menyuam. Qhov pom zoo ib leeg-axis load tsawg dua los yog sib npaug rau 2000N.
Rigidity Constraints: Tsis muaj zog tiv thaiv - lub sijhawm muaj peev xwm tig tau. Cov txheej txheem txhawb zog yuav tsum muaj rau siab - cov xwm txheej tam sim no (xws li ntsug cantilever motion).
Precision Range: Qhov rov ua qhov tseeb yog ± 0.05mm0.1mm, haum rau nruab nrab - qhov yuav tsum tau ua kom raug (xws li tsis yog - qhov tseeb qhov chaw).
Khoom Paub meej
Cov ntaub ntawv khoom
|
Khoom npe |
Circular ncej linear qhia |
|
Khoom siv |
Gcr15 C45 |
|
Kev ua haujlwm |
Deg quenching, polishing, electroplating |
|
Qhov ntev |
Qhov ntev yog txiav thiab kho raws li cov neeg siv khoom xav tau. |
|
Qhov zoo |
1. Ua kom tiav specifications, customized raws li kev thov. 2. Cov khoom siv zoo, siab hardness, muaj zog toughness, ruaj. 3. Qhov saum npoo yog du tsis muaj burrs, thiab nto yog du thiab ci. 4. Hnav tsis kam: haum rau kev ua haujlwm siab - nrawm ntawm ntau yam kabmob. |
|
Cov khoom ntim |
1. Lub hnab yas nrog lub thawv lossis rooj ntoo. 2. Raws li qhov kev thov ntawm peb cov neeg siv khoom. |
|
Lub sij hawm xa tuaj |
Qauv xaj 3-7 hnub, bulk xaj 7-30 hnub. Nws nyob ntawm qhov kev thauj mus los tiag. |
Cov ntaub ntawv txhawb nqa khoom
Technical Standards thiab ntawv pov thawj
- Tswj Precision
Ua raws li German kev lag luam tus qauv DIN 645, qhov ntev ntev ntawm qhov kho qhov muag ncej yog nruj me ntsis tswj ntawm qib g6 (piv txwv li, txoj kab uas hla ntawm Φ10mm ncej yog -0.005mm ~ -0.014mm) kom ntseeg tau meej txuam nrog cov kab bearings.
Nrog rau kev siv rau cov txheej txheem kev lag luam Nyij Pooj JIS B 1192, tsis muaj xws li kev tshem tawm thiab kev sib hloov torque ntawm cov kab bearings yog tus qauv kom haum rau qhov tseeb ntawm cov khoom siv kho qhov muag.
- Khoom siv thiab txheej txheem Certification:
Chrome-plated ncej: Lub hardness saum npoo tau ntawv pov thawj raws li ISO 6508 Rockwell hardness kuaj tus qauv, nrog ntsuas qhov ntsuas tau mus txog qhov siab hardness ntau ntawm HRC58-62.
- Kev Lag Luam Ua Raws Li Daim Ntawv Pov Thawj:
Cov ntawv thov hauv Kev Kho Mob: Muaj ntawv pov thawj raws li ISO 13485 kev tswj xyuas cov cuab yeej kho mob zoo, cov ntsiab lus ntawm cov hlau hnyav (xws li txhuas thiab cadmium) hauv cov ntaub ntawv qis dua cov nqi txwv uas tau teev tseg hauv EC 1907/2006 (REACH) cov cai, ua tau raws li qhov yuav tsum tau siv rau hauv cov khoom siv kho mob huv huv.
Cov nqi khoom
Vim qhov tsis ruaj khov ntawm cov nqi steel, tag nrho cov nqi tso tawm tsuas yog siv rau kev siv xwb!
Thov hu rau peb cov neeg siv khoom kom paub meej tias qhov ntau thiab nqi tsev ua ntej muab qhov kev txiav txim! Peb tos ntsoov yuav ntev -kev koom tes nrog koj!
Kev pabcuam zoo, txhawj xeeb-dawb tom qab- muag
1.Professional Pre-Kev Pabcuam Muag Khoom los pab nrog kev xaiv tus qauv raug
(1) Kev them nyiaj yug dawb rau kev xaiv
Muab 1-on-1 kev pab tswv yim los ntawm cov kws tshaj lij kev lag luam.
Txhawb nqa qauv kev yuav khoom rau kev sim siv.
(2) Kev Pabcuam Customization Tus Kheej
Kev tsim kho tus qauv: Txhawb nqa tsis yog - tus qauv loj machining rau cov qauv tsim tshwj xeeb xws li cov kauj ruam, threaded shafts, milled keyways, snap nplhaib grooves, thiab lwm yam.
Ua ntej-Kev Pabcuam Sibtham: Ua ntej- sib dhos optical shafts nrog kev txhawb nqa blocks thiab linear bearings raws li qhov yuav tsum tau ua, xa cov khoom npaj ua ntej - rau - nruab cov khoom kom txuag tau ntawm - lub sijhawm debugging site.
2.Kev txhawj xeeb-Dawb Tom qab- Kev Muag Khoom Muag, Kev Nyab Xeeb Kev Nyab Xeeb Thoob Ntiaj Teb
(1) Warranty Policy:Npog cov teeb meem tsis zoo ntawm tib neeg xws li cov khoom siv tsis zoo thiab kev ua haujlwm tsis raug, muab cov kev pabcuam hloov lossis xa rov qab.
(2) Kev Pabcuam Hloov nrawm:Thaum tau txais tom qab - thov kev muag khoom, kev kuaj mob thiab kev daws teeb meem yuav ua tiav hauv 24 teev. Hauv cov xwm txheej ceev, cov khoom hloov pauv yuav raug muab rov ua dua hauv 48 teev.
3.Global Warranty Service:
Kev vam khom rau cov kev pabcuam uas suav nrog Asia, Europe, thiab North America, peb muab kev txhawb nqa hauv zos thiab tom qab- muag kev lav kom tshem tawm kev txhawj xeeb txog kev hla- ciam teb / hla- kev yuav khoom hauv cheeb tsam.
4.Ample Stock Availability, Ultra-Kev xa khoom sai sai
(1) Cov Khoom Muag Khoom Loj Loj: Cov qauv diameters xws li 3mm txog 150mm muaj nyob rau hauv Tshuag, nrog rau tag nrho cov khoom muag ntau tshaj 100,000 meters, muaj peev xwm ua tau raws li qhov yuav tsum tau muaj rau kev txiav txim ceev.
(2) Lightning Delivery Mechanism: Rau kev txiav txim thoob ntiaj teb, los ntawm kev sib koom ua lag luam thiab kev xa khoom thoob ntiaj teb, xa mus rau cov lag luam loj xws li Asia, Europe, thiab North America tuaj yeem ua tiav hauv 7-14 hnub ua haujlwm.
(3) Kev txiav txim siab nrawm: Tsis yog - cov qauv tshuab ua raws li qhov tseem ceeb ntawm cov txheej txheem tsim khoom, nrog rau cov qauv kev loj hlob tuaj yeem ua tiav sai li 5 hnub ua haujlwm. Lub sijhawm xa khoom rau kev txiav txim ntau yog 30% luv dua li qhov nruab nrab ntawm kev lag luam.
Kev ceev faj rau xaiv WDCS Tshwj Xeeb - Lub Hom Phiaj Standard Shafts
Rau cov kabmob linear, txij li cov pob hlau txav tawm ntawm qhov chaw ntawm lawv cov ncej, thaum xaiv, yuav tsum tau them nyiaj rau lawv cov hardness, nto roughness, thiab qhov tseeb.
DLY tsim tshwj xeeb - lub hom phiaj txheem shafts rau linear bearings. Yog tias koj lub tuam txhab tsim lawv los ntawm nws tus kheej, vim tias qhov tawv tawv ntawm cov ncej muaj qhov cuam tshuam zoo rau lub neej kev pabcuam, thov nco ntsoov ua tib zoo saib xyuas cov khoom tsim khoom thiab cov txheej txheem kev kho cua sov.
- Khoom siv
Cov ntaub ntawv tsim nyog rau qhov tawv tawv los ntawm qhov nruab nrab - siab zaus quenching: Gcr15 (siab - carbon chromium bearing steel), Sk36 (carbon tool steel), S55C (carbon steel for mechanical manufacturing), thiab lwm yam. feem ntau yog siv raws li cov khoom hais saum toj no -.
Tsis tas li ntawd, nyob rau hauv tshwj xeeb, cov corrosion - resistant martensitic stainless hlau 9GCr18Mo/440C kuj siv.
Lub hardness saum npoo yuav tsum siab tshaj HRC58 (HV653). Qhov tob ntawm txheej hardened nyob ntawm qhov loj ntawm cov kab bearings, tab sis nws yog feem ntau pom zoo kom siv li 2 hli.
- Nto Roughness
Txhawm rau ua kom du dov, thov ua kom nws qis dua 1.6S.
Thaum lub hollow ncej yuav tsum tau siv los txo qhov hnyav, peb lub tuam txhab ib txwm muaj ntau qhov ntau thiab tsawg hauv Table 4 muaj. Thov siv tag nrho lawv.
